Yetter 3400/3500 Standard Rotary Hoe Wheels

Yetter 3400/3500 Standard Rotary Hoe Wheels

The Yetter 3400/3500 Standard Rotary Hoe has rescued many crops since its introduction. It is the insurance policy that saves emerging plants as the spoon-bill wheels break open soil crust.

The Standard Rotary Hoe is used to take out weeds without the use of herbicides, aerate wet residue before planting, and help prevent blowing sand. It is designed for conventional and min-till farming operations.

Features

  • Short- and long-cast arms stagger wheels 7" to facilitate residue flow
  • Wheels spaced on approximately 3 1/4" centers across width of machine
  • Spoon-bill wheel teeth are mounted on individual, spring-cushioned cast arms, allowing better soil contact with each wheel
  • Low horsepower requirements with operating speeds of 7-10 mph
  • Available with a wide array of options to fit the needs of your operation (gauge wheels, helper springs, trash guards, min-till conversion, and rear parking stand for folding models; see options tab above for details)
  • Widest models (see model details) feature double 7" x 7" toolbar design for added strength
  • Rigid (3400 model) available in 12', 15', 21', 28', 30', and 34' widths
  • 180° flat-folding (3500 model) available in 25', 28', 30', 34', 41', 46', 54', and 60' widths
  • Breaks up crusted soil to improve emergence
  • Mechanically rips out young weeds
  • Aerates and fluffs soil around growing plants
  • Incorporates herbicides and small seeds in one fast pass

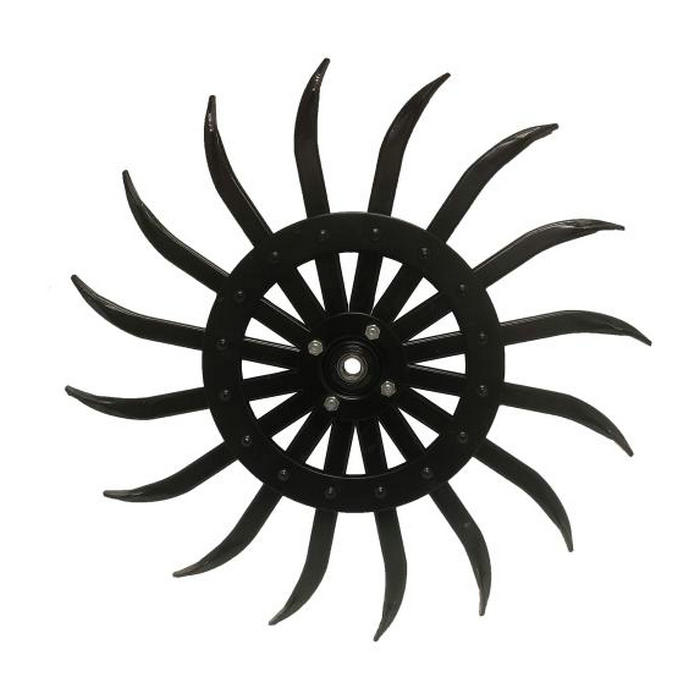

Replacement Rotary Hoe Wheels (3400-111)

  • Available in Black or Green



3400 Rigid

Model

Toolbar Dimensions

Gang
Sections

Working
Width

Transport
Width

Row
Configuration

Quantity of
Hoe Wheels

Weight
(lbs.)

3412

4" x 4" x 1/4" x 149"

3

12'-5"

12'-5"

4R30, 6R22

42

1,441

3415

4" x 4" x 1/4" x 184"

4

15'-4"

15'-4"

4R40, 6R30, 8R22

52

1,681

3421

5" x 7" x 1/4" x 255"

6

21'-2"

21'-2"

6R40, 8R30, 12R20

72

2,231

3428

5" x 7" x 1/4" x 338"

8

28'-2"

28'-2"

8R40, 16R20

96

2,851

3430

5" x 7" x 1/4" x 366"

8

30'-6"

30'-6"

10R36, 12R28, 12R30

104

3,211

3434

5" x 7" x 1/4" x 408"

8

34'-0"

34'-0"

10R40, 14R28, 18R22

116

3,957



3500 Folding

Model

Toolbar Dimensions

Gang
Sections

Working
Width

Transport
Width

Row
Configuration

Quantity of
Hoe Wheels

Weight
(lbs.)

3525

Center: 7" x 7" x 1/4" x 174"

Wings: 7" x 7" x 1/4" x 63"

4

25'-0"

14'-10"

8R36

86

3,499

3528

Center: 7" x 7" x 1/4" x 167"

Wings: 7" x 7" x 1/4" x 84"

8

28'-0"

14'-3"

8R40, 16R20

96

3,640

3530

Center: 7" x 7" x 1/4" x 181"

Wings: 7" x 7" x 1/4" x 91"

8

30'-2"

15'-5"

12R30, 12R28, 16R22

104

3,904

3534

Center: 7" x 7" x 1/4" x 209"

Wings: 7" x 7" x 1/4" x 98"

8

33'-10"

17'-9"

10R40, 14R28, 18R22

116

4,799

3541

Center: 7" x 7" x 3/8" x 245"

Wings: 7" x 7" x 1/4" x 123"

9

40'-10"

20'-9"

12R40, 16R30, 24R20

140

5,269

3546

Center: 7" x 7" x 3/8" x 303"

Wings: 7" x 7" x 1/4" x 123"

9

45'-10"

25'-9"

14R36, 18R30, 24R22

158

5,732

3554

Center: 7" x 7" x 1/2" x 334"

Wings: 7" x 7" x 3/8" x 156"

12

54'-2"

29'-0"

16R40, 18R36, 32R20

186

8,707

3560

Center: 7" x 7" x 1/2" x 386"

Wings: 7" x 7" x 3/8" x 170"

13

60'-6"

32'-5"

20R36, 24R30,26R28

208

10,299
